20x40 House Plans (800 Sq Ft) - 2 & 3 BHK Compact Modern Layouts
A 20x40 plot (800 sq ft / 88.89 sq yards) is a very popular linear plot dimension in residential layouts. Because of the 1:2 aspect ratio, smart interior zoning and light wells (cutouts) are used to ensure every bedroom and bathroom receives ample natural cross-ventilation.
800 sq ft
(88.9 sq yards)1100 sq ft
G+1 DuplexEast Facing
Optimal Solar & Airflow Design₹16 - ₹26 L
Complete ConstructionEstimate Exact Building Cost for 20 ft x 40 ft (800 sq ft)
Calculate total cement, steel (TMT), bricks, sand, and labor costs for this exact floor area using our free India Construction Estimator.
₹19.3 Lakhs
₹24.2 Lakhs
₹33.0 Lakhs
Need a 20 ft x 40 ft Plot to Build this Plan?
Explore verified A Khata & BDA/BMRDA sanctioned plots (around 800 sq ft) for sale directly from owners and registered agents in Bangalore.
Recommended Room Dimensions & Space Orientation
Standard room proportions designed for comfort, furniture clearance, and maximum natural airflow.
| Room / Zone | Recommended Size | Recommended Orientation |
|---|---|---|
| Living & Dining | 11 ft x 18 ft | North-East |
| Kitchen | 8 ft x 9 ft | South-East |
| Master Bedroom | 11 ft x 13 ft | South-West |
| Second Bedroom | 10 ft x 11 ft | North-West |
| Car Parking Porch | 9 ft x 14 ft | North |
Architectural & Ventilation Rules for 20x40 House Plans
Optimal directional alignments for sunlight exposure, cross-ventilation, and privacy.
Linear Air Flow
Install an open shaft (OTB) or lightwell in the center or dining area to bring natural light and airflow into deep rooms.
Municipal Setbacks & Bylaws
Typical building setback clearances required for plan sanction (BDA, DTCP, GHMC, BBMP, CMDA).
Front Setback
4 ft
Rear Setback
3 ft
Side Setbacks
2 ft or zero on one wall

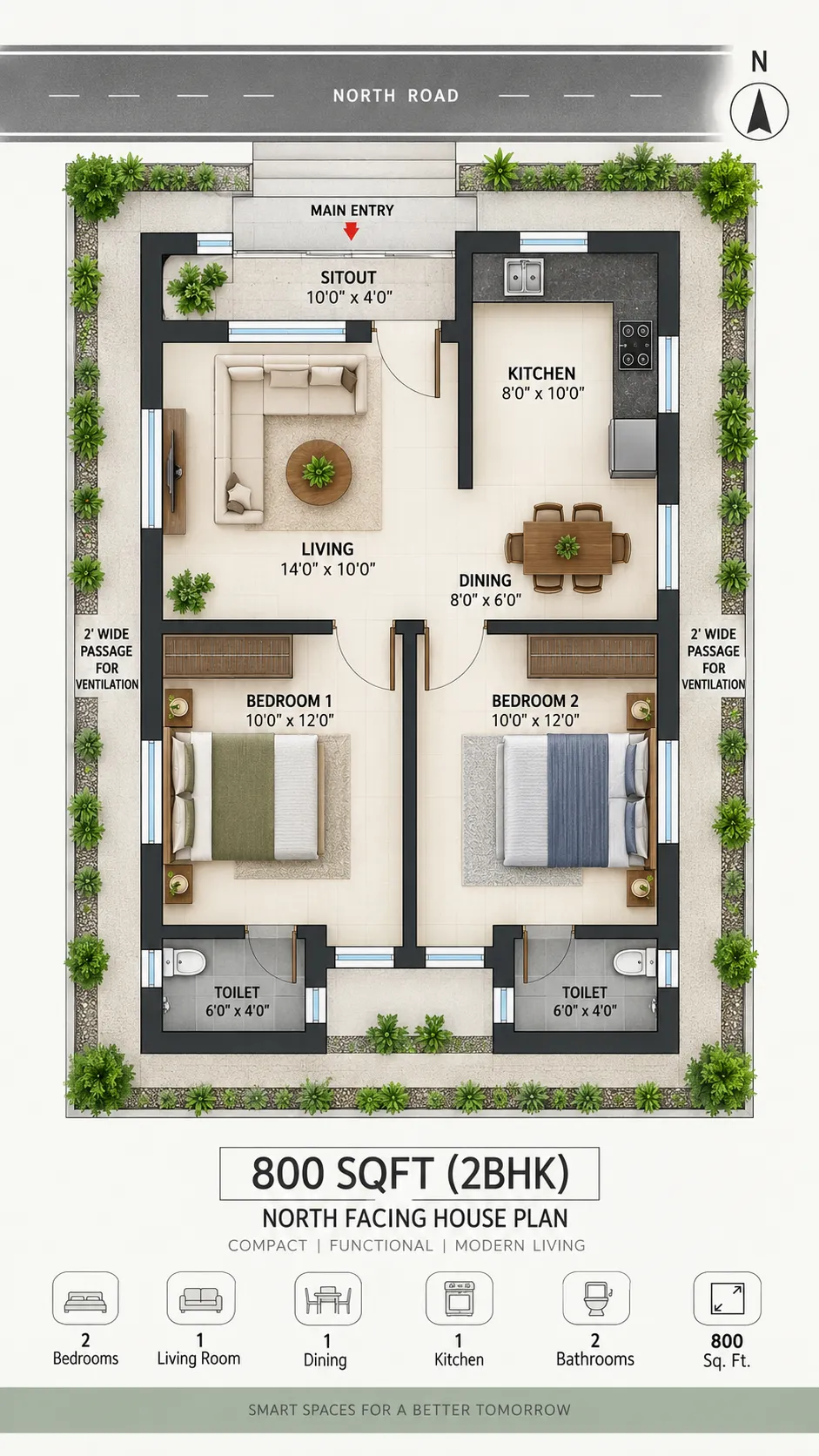

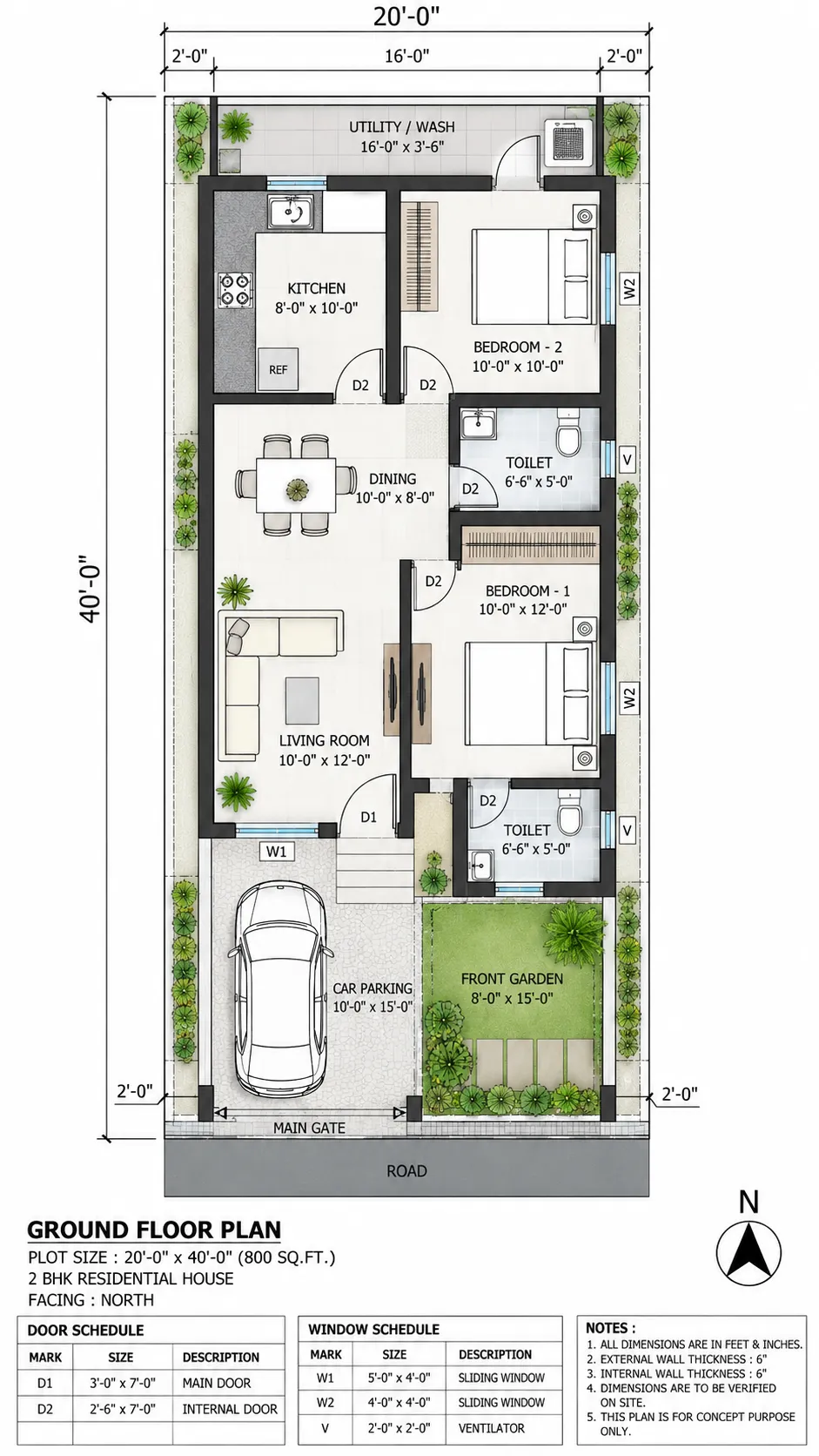

Sample Blueprints for 20x40 House Plans
Architectural Concept & Sanction Disclaimer
All floor plans, layouts, and architectural designs on this platform serve as conceptual design ideas. Users must consult licensed professional architects, structural engineers, and local municipal authorities for official structural drawings and statutory building sanction approvals. You may start using these plans as an inspirational concept and feel free to modify them; however, try to incorporate the recommended dimensions, structural setbacks, and ventilation guidelines as much as possible where practical for your site.
Frequently Asked Questions About 20x40 House Plans
What is the construction cost for 20x40 house?
Constructing a ground floor 20x40 house costs approximately ₹16 to ₹22 Lakhs. A duplex model costs around ₹28 to ₹36 Lakhs.
